New Design China Cheap Quick Build 20Ft 40 Ft Luxury Foldable Expandable Container House Model House Prefab Tiny Modular Homes

1 set
MOQ
$8,700.00(1 - 1 sets) $8,500.00(>=2 sets)
Price
New Design China Cheap Quick Build 20Ft 40 Ft Luxury Foldable Expandable Container House Model House Prefab Tiny Modular Homes
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
After-sale Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Other
Project Solution Capability: Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation, Others
Application: Hotel, Villa, Apartment, Etc.
Place Of Origin: Hebei, China
Brand Name: SYTD
Model Number: SYTD-EX004
Use: Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
Product Type: Container Houses
Design Style: Modern
Product Name: Quick Assembly Prefabricated House
Type: Detachable
Advantage: Eco Friendly
Color: Customized Color
MOQ: 1 Set
Design: Costom Requests
Application Fields: Steel Structural Fabrication Construction
Function: Portable Room Outdoor
Main Structure: Galvanized Light Steel Frames
Feature: Fast Build
Basic Infomation
Place of Origin: Hebei, China
Brand Name: SYTD
Model Number: SYTD-EX004
Payment & Shipping Terms
Supply Ability: 1000 Set/Sets per Month
Product Description

The cheapest prefabricated expandable container house in China

Container modular house and prefab houses that can be used as a granny flat, spare room, rental investment, first home,downsizing, deluxe mining camp accommodation, crib room, training room, office and accommodation for caravan & holiday parks, bed and breakfasts and more!
External size
L5850mm*W6360mm*H2530mm
L11800mm*W6360mm*H2530mm
Inner size
L5390mm*W6260mm*H2420mm  ( 37㎡ )
L11800mm*W6260mm*H2420mm ( 74㎡ )
Packing size
L5850*W2250mm*H2530mm  (2 set of 40hc)
L11800mm*W2250mm*H2530mm  (1 set of 40hc)
Option size
20ft,40ft,etc...We also had special size for 2.9M height
Main material
Galvanized steel structure with sandwich panel wall and doors,windows,etc.
Weight
2500kg
Service life
30-40 years
Color
White, Charcoal or customized
Steel structure
3mm Hot galvanized steel structure with 4 corner casts and
(1) 18mm fiber cement board;
(2) 1.6mm PVC flooring;
(3) 50mm rock woll, eps or PU sandwich panel;
(4) Galvanized steel base plate.
Roof
3-4mm Hot galvanized steel structure with 4 corner casts and
(1) Galvanized steel roof covering;
(2) 50mm -70mm eps sandwich panel or PU sandwich panel ;
(3) 50mm-70mm eps sandwich panel or PU sandwich panel ;
Columns
3mm Hot galvanized steel structure
Wall
50/75/100mm EPS/Rock woll/PU sandwich panel
Door
Made of steel/aluminum frame,dimension W870*H2040mm,furnish with a handle lock with 3 keys,or sliding glass door W1500*2000mm.
Window
Made of PVC/aluminum fame.
Dimension W800*H1100mm, glazed with double glass in a thickness of 5/8/5mm.
Connection kits
PVC Connection kits for ceiling,floor and walls.
Electricity
3C / CE / CL / SAA Standard,with distribution box,lights,switch,sockets,etc.
Optional accessories
Furniture, sanitary, kitchen, A/C, electrical appliance for accomodation, office, dormitory, Toilet, kitchen, bathroom, shower,
steel roof, cadding panels, decorative material, etc.
Advantage
(1) Fast installation: 2 hours/set, save labor cost;
(2) Anti-rust: all material use hot glavanized steel;
(3) Waterproof: without wood ceiling,wall;
(4) Fireproof:Fire rating A grade
(5) Simple foundation:just need 12pcs concrete bolck foundation;
(6) Wind-resistant(11 level) and anti-seismic(9 grade)

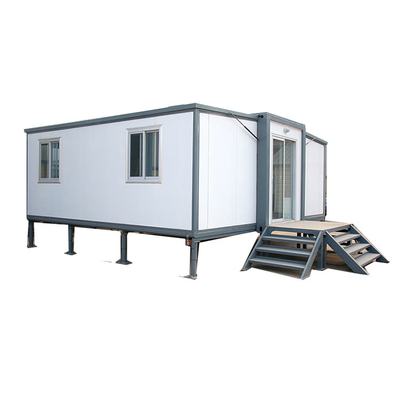

20FT size expandable container house

(1) Size:37 square meters Closed: 5850*2250*2530mm Open: 5850*6300*2530mm (2) The color can be choose (3) the panel have eps sandwich panel ,rock wool sandwich panel and Pu sandwich panel (4) There is ultrahigh special size

Expandable container house with exterior decoration

(1) There can be a roof (2) There can be a decking (3) There can be a stairs (4)The wall can be decorated by PVC plate or the metal sheet cladding

40Ft size expandable container house

(1) Size: 74 square meters Closed: 11800*2250*2530 Open: 11800*6280*2530 (2) The color can be choose (3) The panel have eps sandwich panel ,rock wool sandwich panel and Pu sandwich panel (4) There is ultrahigh special size
Expandable Modular Prefabricated Living Container Houses
The prefabricated camp house description: 37 or 74 ㎡
Modular home inside
This pop up home has a beautiful open plan lounge and kitchen, with great size bathroom and literally folds out.
Construction and assembly
On average, it takes our highly skilled and experienced team 3 days to construct on site. It is fully transportable and relocatable and can be packed up within hours with very little fuss.
Transport or relocating
They are transported on a tilt tray and placed onto 12 foundations.
SAA approved wiring
You can use it as a granny flat, temporary home or you principle place of residence, and it comes with SAA approved wiring.
Framing
The structure is galvanised steel with 75mm EPS sandwich panels, making the house very well insulated and keeping it cool in
summer and warm in winter, and is compliant with an Australian engineers design certificate and form 15 for council.
The house is very homely, bright, has plenty of windows for natural light and will deliver a fantastic return on investment,
however you use it.
size :
40FT size :74m2 open 11800*2250*2530mm Closed 11800*6280*2560mm
20FT size :37m2 Closed 5850*2250*2530mm Open 5850*6300*2530mm
We also had special size for 2.9M height

Standard Inclusions:

· Gloss 3.6m kitchen with cupboards and draws, cesar stone bench tops. with double stainless-steel sink and flick mixer;
· Internal partition walls for the bedrooms;
· Base floor is 18mm marine plywood with quality pvc floor coverings fitted

All cornices and architraves:
· Gloss 3.6m kitchen with cupboards and draws, cesar stone bench tops. with double stainless-steel sink and flick mixer;
· Internal partition walls for the bedrooms;
· Base floor is 18mm marine plywood with quality pvc floor coverings fitted.

Australian or US standard water marked toilet:
· Electrical: SAA approved 2.5mm cable to power points, 1.5mm cable to lights, light switches & fittings.
· Waterproofed external plug. Plumbing and sanitary wares;
` Powder board with safety switch;
` Warranty and what it covers;
` We have a 10-year structural warranty on galvanised steel framing.

Free fly screens for windows:
` 9 x Double glazed glass and aluminium sliding windows;
` 1 x Double glazed glass and aluminium casement door;
` 6 x Lights;
` 11 x Power points.
All Cornices and Architraves.
Electrical: SAA approved 2.5mm cable to power points, 1.5mm cable to lights, light switches & fittings. Waterproofed xternal plug.
Plumbing and Sanitary wares.
Powder Board with Safety Switch.

Warranty and what it covers:
We have a 10-year structural warranty on galvanised steel framing.

Features:
They look like a home, not a container, and they are strong and durable. Plug them into your mains or install solar with an
eco-septic system and go completely off grid.
Taking them down is a reverse process of installing and they fold down to the size of a container Our plans can be modified and additions made to suit individual requirements.
Move them with a tilt tray, they can be relocatable or permanent.

Options:
The external flashing’s come in Ironstone, Cottage green or White.
Add a sliding door with fly screen to open out onto a veranda.
Extend the bathroom.
2 way bathroom.
Laundry/pantry cupboard.
Window and door blinds to suit available in black or white.
laundry room.

Additional Information:
Electrical appliances not included.
Our plans can be modified and additions made to suit your individual requirements.
Our Expandable 37SQM and 58SQM home’s simply requires 12 – 16 foundations to sit on, leveled for stability.
Construction and Assembly:
On average, it takes our highly skilled and experienced team 3 days to construct on site. It is fully transportable and
relocatable and can be packed up within hours with very little fuss.

Transport or relocating:
They are transported on a tilt tray and placed onto 12 foundations.

On-site delivery can be arranged for an additional cost from your local port. They are transported on a tilt tray, a franna crane
may be required for 1 hr to assist with placing the home on the foundations. Please ask for a quote.
Our homes are Cyclone rated for Region “C”.
All engineer plans are supplied with a form 15 for council.
Our temporary or permanent Pop Up Homes are perfect for use as granny flats, spare rooms, an investment, renovating, first home,
downsizing, deluxe camp accommodation and much more.

Put one on a block you can’t build on, relocate it whenever you like, or live in it while building your dream home.
Advantage of the container house:
1. The cost of container is 30% lower than that of traditional building, which is more suitable for individual small-scale operation;
2. The construction period is short, more than 85% faster than the traditional structure, and the construction period can be as fast as 10 days;
3. The container building can be moved;
4. Container house is built without construction waste and noise pollution, which is green and environmental protection.

1. You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.

2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.

3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.

4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.

5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5star hotel. The house size and house design is firm , the house layout can custom made as request. It is easy and fast assemble, the insulation is custom made as the local climate , make the house suits for local and live in for a comfortable life. The design lifetime is 25 years.

6. Payment term?
T/T or irrevocable L/C at sight .

7. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 21~30 days after receiving deposit.

8. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, Wechat, WhatsApp and so on 24*7 and you will get reply within 8 hours.
